product name:
H-22-6A Digital knob multi-ring potentiometer knob 6.4mm metal knob can be equipped 3590S 534
product description:
Outer diameter: 22MM
Height: 24MM
Shaft hole diameter: 6.4MM
Center to center distance of positioning: 9
Dial scale: 0-90; Number of small window turns: 0-14
Fixed form: fixed with small screws on the side
Equipped with a switch locking device, the surface of the outer cover is electroplated, providing a decorative aesthetic.
Beautiful and generous appearance, uniform rotational torque, accurate handwriting display, and shockproof fastening structure.

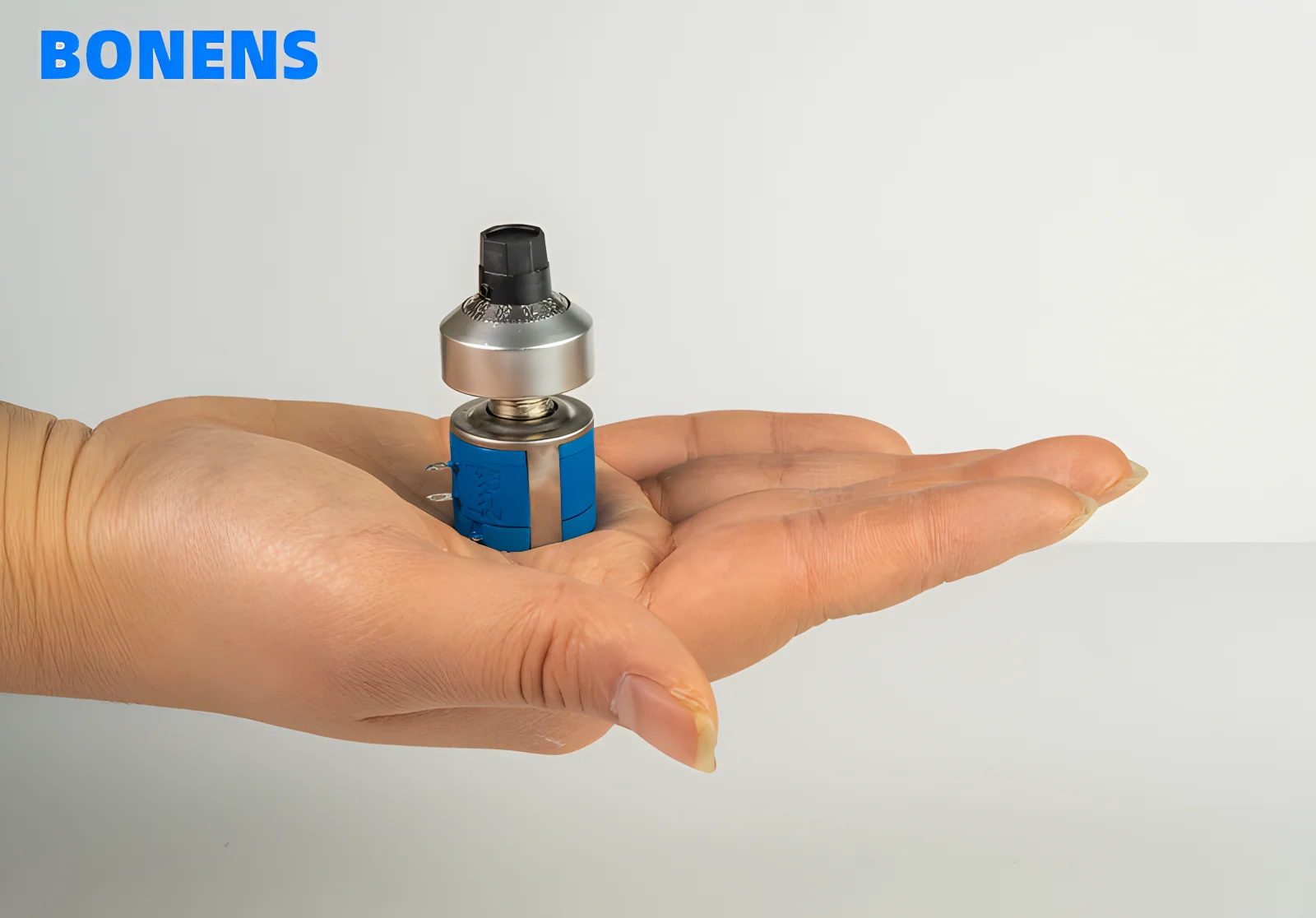

Function: This product is mainly used for precision Φ 6.35 Multiple coil wire wound potentiometers for matching use, such as 3590S, et
Product Features:
H-23-6A is a multi turn potentiometer matching knob, with high shell material strength and surface finish. The internal mechanical structure adopts the principle of mechanical friction, with uniform feel and accurate and reliable positioning. The scale line is processed using corrosion method, and the scale is clear and easy to distinguish
1. No rebound, with locking function.
2. The structure is firm and reliable, specially designed for metal shafts.
3. Small size and compact, only need 22mm diameter panel space.
4. It can be rotated 15 times, with counter and dial, the scale is clear and easy to distinguish.
5. The internal mechanical structure adopts the principle of mechanical friction, which has uniform hand feel and accurate and reliable positioning.

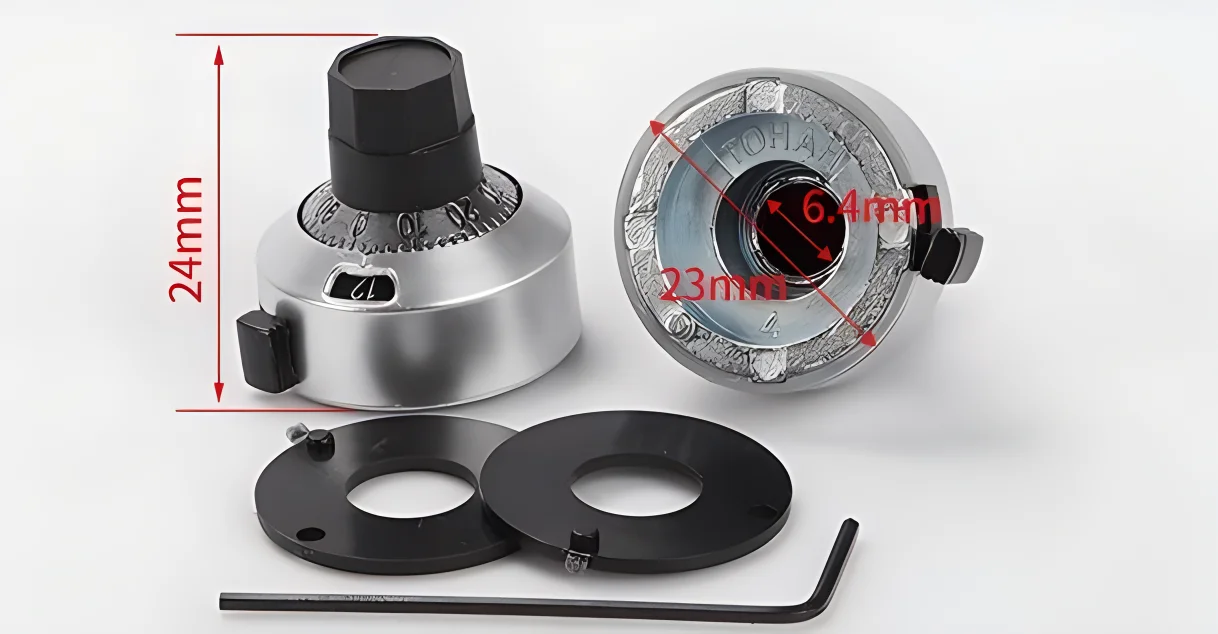

Product size
![H-23-6A Multi-turn 0-14 15 Turns Volume Control Digital Dial Knob 3590S 534 Potentiometer Aluminum Knob 6.4mm]()
Specification parameters:
Name: Potentiometer scale knob
Model: H-22-6A
Type: Turns-Counting Dial
Design: Concentric with Brake
Indicator type: Numbers, 15-Turn
Features: Turns-Counting Dial
Product type: Knobs & Dials
Shaft diameter: 1/4 in
Outer diameter: 23 mm
Height: 24 mm
application area
Suitable for various shaft diameter within 6.4mm: multiturn trimmer potentiometer, (such as: 3540 series, 3590 series, 7276 series, 7286 series, 534 series, 22HP-10 series, etc.), multiturn trimmer resistors, multiturn trimmer capacitors, governors, sensors, precision instruments, medical equipment, power supplies, automated measuring equipment or other multiturn rotating equipment.

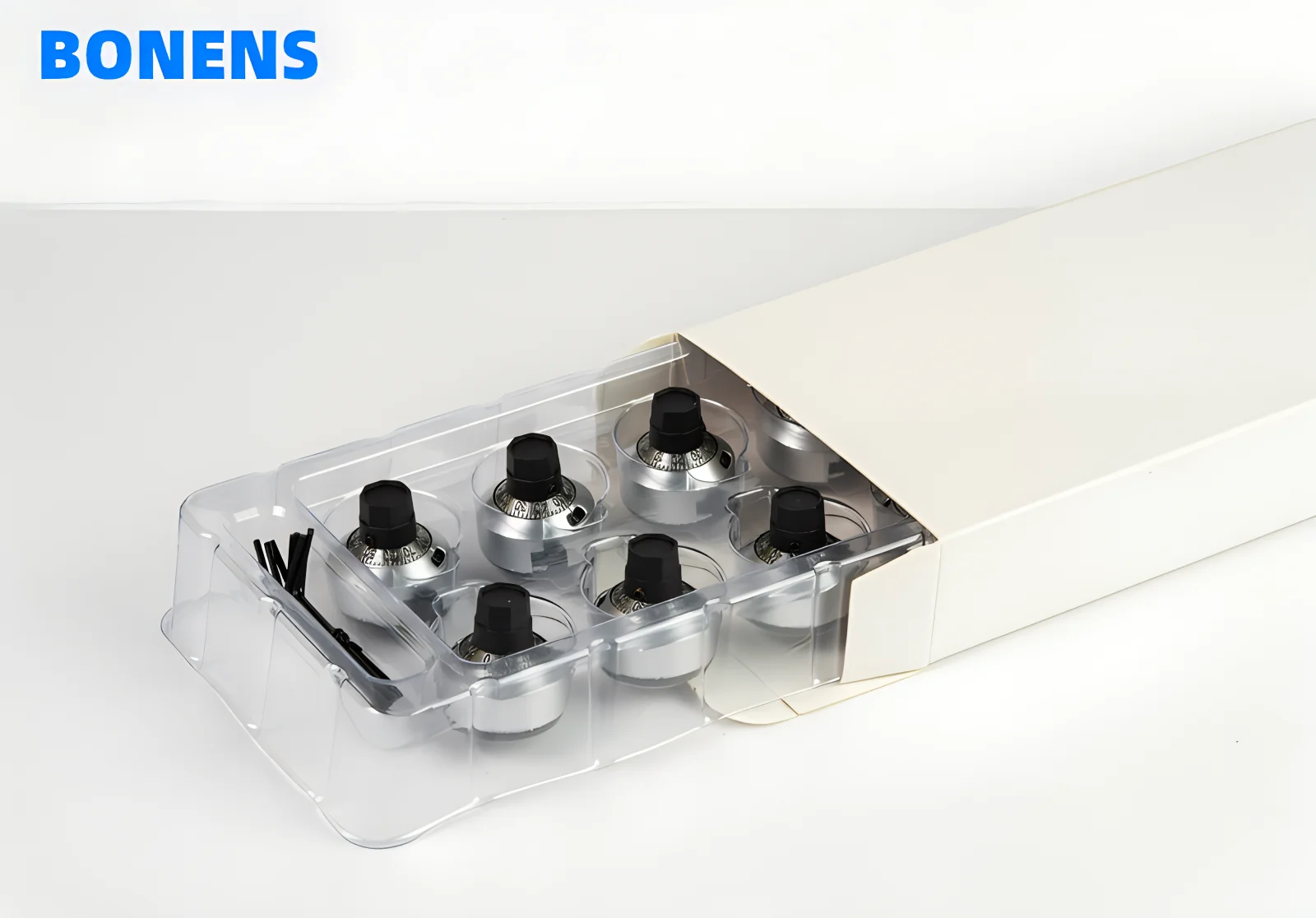

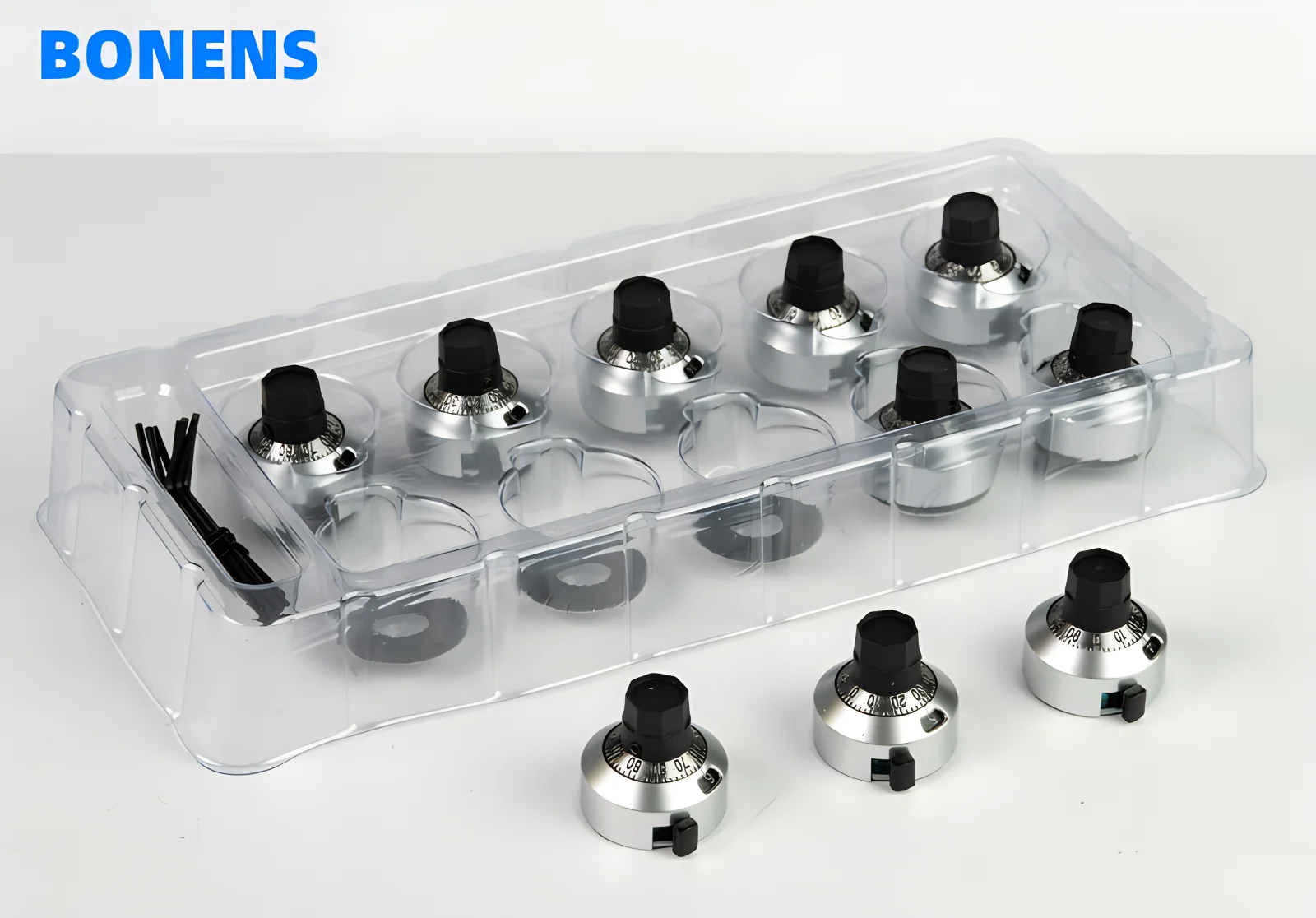

Product packaging
Packing: 10pcs/box Weight: 50 g/pcs

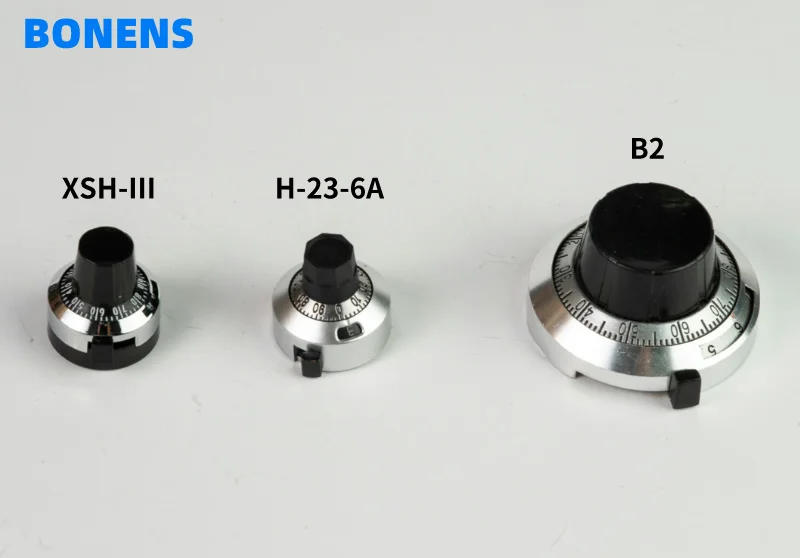

product catalog:
![H-23-6A Multi-turn 0-14 15 Turns Volume Control Digital Dial Knob 3590S 534 Potentiometer Aluminum Knob 6.4mm]()
Factory Display:
We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.
Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.
We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future!
FAQ:
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
